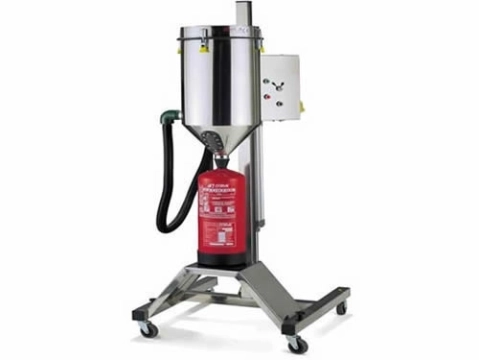

MFP-104-INOX
This equipment is specially designed for emptying, filtering and micronizing powder to fill extinguishers. This operation is done simply, quickly and cleanly. This unit has a vessel with 50 Kg, of capacity.
The operation of open and closed charging valve, self-cleaning of filters and adjusting the vessel at the right height are done by use of a pneumatic system. This unit is completed made in stainless steel.
The operation of open and closed charging valve, self-cleaning of filters and adjusting the vessel at the right height are done by use of a pneumatic system. This unit is completed made in stainless steel.
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Height | 1850mm |
| Width | 620mm |
| Depth | 900mm |
| Weight | 80kg |
| Ventilator | 1.1kw |
| Electrical Power | Monophastic 220v |
| Pneumatic Power | Compressed Air to 7/9 Bar |
